Thin oil lubrication
WYX2 Oil Tanker
WYX2 Oil tanker holed defoaming an d degassing functions , and prepared a filter of precision 0.25mm,and a magnetic filter to extract impurity in the backflow.This tanker is matched with ( JB/ZQ45861997),its main use is storage oil, and takes effect of deposition, heat radiating and gas emitting.
Inquiry

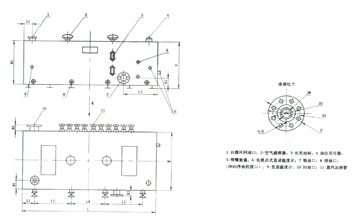

Appearance and dimensions：
| type |
volume m3 |
pump output L/min |
heater area m2 |
steem waste kg/h |
filler area m2 |
filler precision mm |
max。level mm |
min.level mm |
weight kg |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| WYX2-5 | 5 | 160/200 | 2 | 40 | 0.48 | 0.25 | 1190 | 290 | 2395 |
| WYX2-10 | 10 | 250/315 | 3.5 | 65 | 0.56 | 1240 | 340 | 3290 | |
| WYX2-16 | 16 | 400/500 | 5.5 | 90 | 0.58 | 1440 | 340 | 4593 | |
| WYX2-20 | 20 | 630 | 7 | 120 | 0.63 | 1540 | 290 | 5264 | |
| WYX2-25 | 25 | 800 | 9 | 140 | 0.75 | 1640 | 340 | 6062 | |
| WYX2-31.5 | 31.5 | 1000 | 10.5 | 180 | 0.80 | 1690 | 340 | 6467 | |
| WYX2-40 | 40 | 1250 | 14 | 220 | 0.88 | 1890 | 340 | 7607 | |
| WYX2-50 | 50 | 1600 | 18 | 260 | 0.96 | 2110 | 290 | 11006 | |
| WYX2-63 | 63 | 2000 | 21 | 310 | 1.1 | 2290 | 290 | 13813 |
